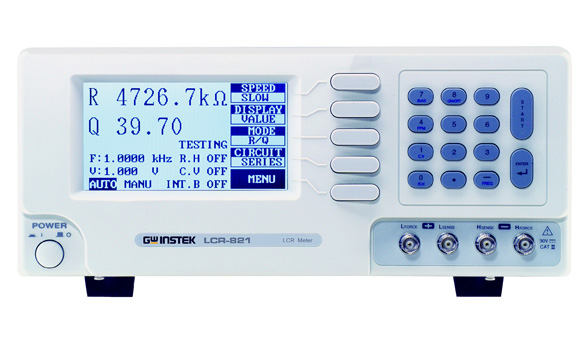

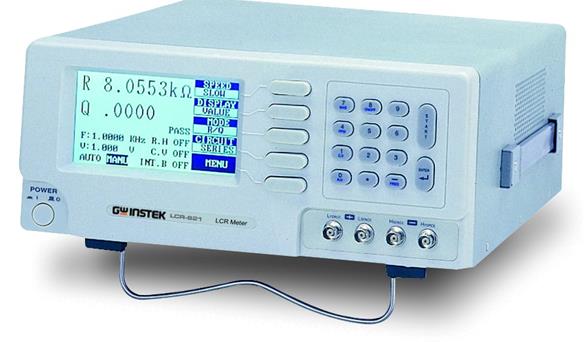

LCR-800

Test Frequency:
12Hz~200kHz (LCR-821)
12Hz~100kHz (LCR-819/829)
12Hz~10kHz (LCR-817/827)
100Hz~2kHz (LCR-816/826)
0.05%~0.1% Basic Accuracy
100 Sets Memory for Save/Recall of Settings
R/Q, C/D, C/R, L/Q, Z/θ, L/R Test Modes
Absolute Value,ΔValue, and Δ% Measurement Display
240 x 128 dot Matrix LCD Display
Displays Condition and Test Result Simultaneously
Standard Interface: RS-232C (LCR-821)/ Handler (LCR-829/827/826)
Optional Interface: RS-232C (LCR-819/817/816)

产品叙述产品规格配件订购信息下载

The LCR-800 Series are high-end digital LCR meters for component/material measurements, applicable to various R&D activities and assembly lines. The large 240 x 128 dot matrix LCD display provides ample room for two measurement items and setup parameters, allowing you to grasp measurement results quickly. All test modes are able to measure supplementary factors, such as, R/Q, C/D, C/R, and L/Q. The LCR-821 also contains precise resistance measurements as a combination of absolute value and phase angle. 100 sets of measurement setup memory allow sharing a single unit among multiple testing conditions or sites. For a better viewing experience in a standard PC monitor, proprietary Windows based software is accessible via the RS-232C terminal. The handler interface is also a standard feature for LCR-826/827/829.

MODEL		LCR-821	LCR-819	LCR-829	LCR-817	LCR-827	LCR-816	LCR-826
Display		240 x 128 dot matrix CCFL back light LCD
Test Frequency		12Hz~200kHz (504 steps)	12Hz~100kHz (503 steps)		12Hz~10kHz (489 steps)		100Hz~2kHz (245 steps)
Basic Accuracy		0.05%	0.05%	0.1%	0.05%	0.1%	0.05%	0.1%
Test Mode		R/Q, C/D, C/R L/Q, Z/θ , L/R	R/Q, C/D, C/R,L/Q		R/Q, C/D, C/R,L/Q		R/Q, C/D, C/R,L/Q
Memory		100 memory blocks totally
DC BIAS	Internal	2V	2V		2V		2V
	External	0 ~35V	0 ~30V		0 ~30V		0 ~30V
Interface	RS-232	Std.	Opt.		Opt.		Opt.
	Handle			Std.		Std.		Std.

规格
测试频率
	12Hz ~ 200kHz (504 steps) for LCR-821;12Hz ~ 100kHz(503 steps) for LCR-819/829;12Hz ~ 10kHz(489 steps) for LCR-817/827;100Hz ~2kHz (245 steps) for LCR-816/826
*基本精度 ()**
	0.05% for basic accuracy for LCR-821/819/817;0.1% for basic accuracy for LCR-829/827/826/816
测试速度
	68ms for LCR-821/819/817/816, 34ms for LCR-829/827/826
测试信号水平
	5mV ~ 1.275Vrms ( 5mV/step ) for LCR-821/819/829/817/827;0.1V ~ 1.275Vrms ( 5mV/step )for LCR-816/826
DC BIAS
内部	2V
外部	0 ~ 35V for LCR-821; 0 ~ 30V for LCR-819/829/817/827/816/826
显示范围()**
电阻	R 0.00001Ω ~ 99999kΩ
电容	C 0.00001pF ~ 99999uF
电感	L 0.00001mH ~ 99999H
品质因数	Q 0.0001 ~ 9999
耗散因数	D 0.0001 ~ 9999
阻抗	\|Z\| 0.00001Ω ~ 99999kΩ for LCR-821
相角 (度)	θ -180.00° ~ 180.00° for LCR-821
测试模式
	R/Q, C/D, C/R, L/Q, Z/θ, L/R for LCR-821 only
等效电路
	并联或串联选择
存储
	100 memory blocks total
平均
	1～255 times
测试速度模式
	低,中和高
显示模式
	Value, △, △%
显示
	240 x 128 点矩阵 C.C.F.L背光 LCD
接口
	标配 : RS-232C for LCR-821;标配 : Handler Interface for LCR-829/827/826;选配 : RS-232C Interface for LCR-819/817/816(包括用于RS-232C接口的LCR-Viewer软件)
电源
线性电压范围	100V - 240V, 47-63Hz/400Hz
尺寸 & 重量
	330(W) x 149(H) x 437(D)mm;约. 5.5kg
*()：基本精度随着被测设备的速度，频率，交流信号电平和阻抗而变化。**
()：显示范围是指可以在屏幕上显示的测量值范围。有关测量范围，请参阅LCR-800用户手册。**

点击下载

User manual x1, Power cord x1, LCR-06A x1

OPTION
Opt. 01 RS-232C Interface ( Factory Installed )

OPTIONAL ACCESSORIES

LCR-05 Test Fixture for Axial & Radial Leaded Components

LCR-06A Kelvin Clip Test Lead

LCR-07 Test Fixture, Two-Wire with Alligator Clips

LCR-08 Test Fixture (Tweezers) for SMD / Chip Components

LCR-09 Test Fixture for SMD / Chip Components

LCR-13 Test Fixture for SMD / Chip Components

GRA-402 Rack Adapter Panel, Rack Mounting (19", 4U)

GTL-232 RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer

GTC-001 Instrument Cart

GTC-002 Instrument Cart
